UD Hydraulic Punching Machine


UD Hydraulic Punching Machine


UD Hydraulic Punching Machine


  • Model: UD-60E

  • Throat Depth (Punching): 75 mm

  • Motor Power: 7.5 HP

  • Machine Dimensions: L850 × W700 × H1300 mm

  • Weight: 1130 kg

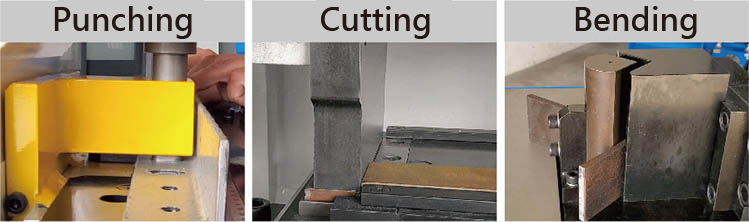

The UD-60E Hydraulic Punching & Shearing Machine features an extended punching throat depth (75 mm), enabling punching, shearing, notching, and bending in a single unit.

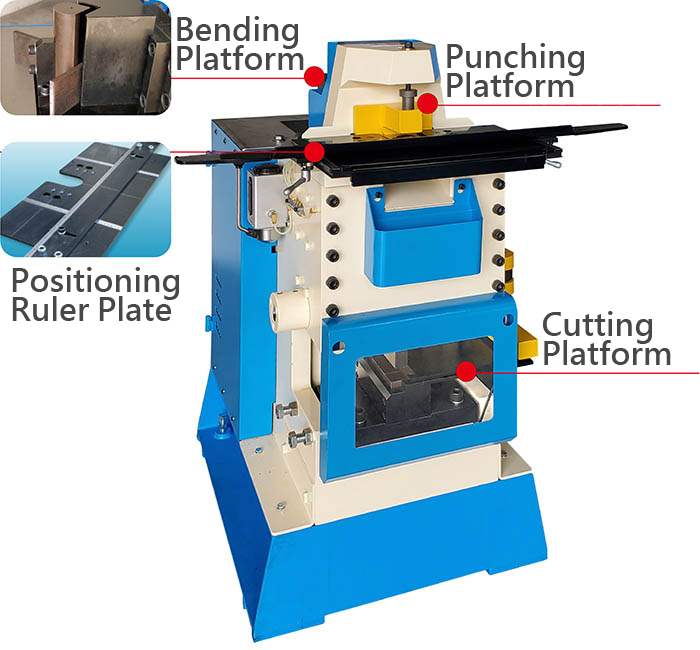

Built with a reinforced hydraulic system and high-rigidity frame, the machine includes a widened punching platform, positioning gauge, and cutting platform for faster setup and repeatable accuracy.

The UD-60E Hydraulic Punching & Shearing Machine is ideal for copper busbar fabrication, steel structure installation, metal component processing, and electrical assembly production lines.


油壓式切斷沖孔機_可沖孔_切斷_折彎_潤億機械



Features：

  • Hydraulic Drive: Utilizes a hydraulic system to provide strong pressure, ensuring fast and precise punching.

  • High Efficiency & Labor Saving: More efficient than traditional manual punching methods, ideal for mass production.

  • Wide Material Compatibility: Suitable for copper bars, aluminum bars, stainless steel, and other metal materials.

  • Quick Die Change System: Easy and user-friendly die replacement operation.

  • Multiple Hole Size Options: Dies can be changed to adjust punching size and shape, meeting various requirements.

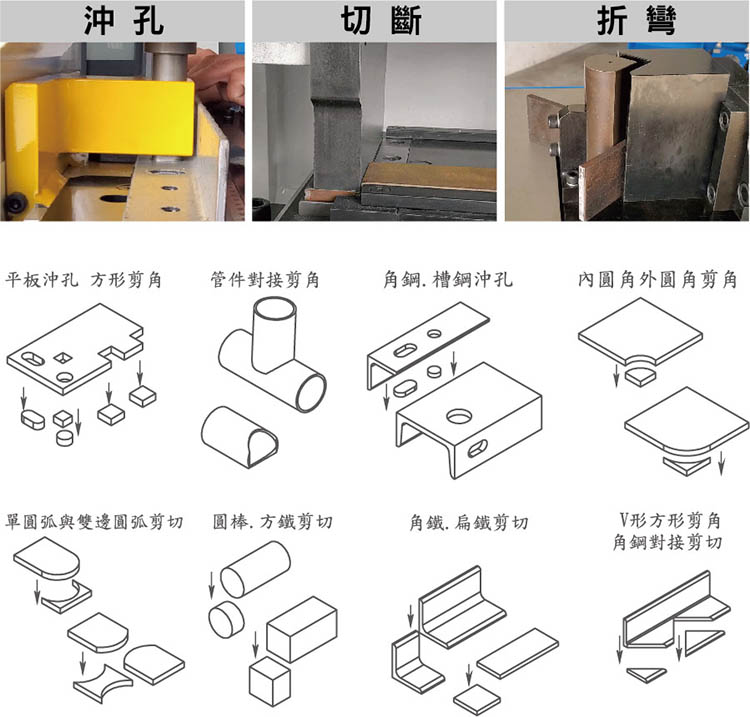

  • Applications: Metal cutting, punching, notching, bending, pipe joint shearing and punching, as well as inner/outer circle shearing of plates.

油壓式銅排切斷沖孔機_可沖孔_切斷_折彎_潤億機械
