SD Hydraulic Punching Machine


SD Hydraulic Punching Machine


SD Hydraulic Punching Machine


  • Model: SD-60

  • Throat Depth (Punching): 75 mm

  • Motor Power: 5 HP

  • Machine Dimensions: L800 × W650 × H1200 mm

  • Weight: 950 kg


The SD-60 Hydraulic Punching Machine delivers high-precision punching with stable hydraulic output, capable of punching, cutting, notching, and bending in one machine.
Built with a high-rigidity C-frame structure and equipped with PLC control and stroke positioning, it is ideal for processing copper busbars, aluminum bars, steel plates, angle bars, and flat bars.

The SD-60 Hydraulic Punching Machine supports quick die change, foot/dual-hand operation, and safety light curtains, making it a powerful solution for electrical busbar fabrication, metalworking shops, steel structure installation, and hardware production lines.


Features：

  • This model is designed for metal fabrication processes such as punching, notching, cutting, bending, pipe joint shearing, and straightening.
  • Commonly processed materials include angle steel, channel steel, flat bars, square bars, round bars, H-beams, flat plates, round pipes, square pipes, coil sheets, as well as copper strips and copper plates.
  • Special-purpose dies from traditional press machines can also be installed on this model.
  • The full-floor frame structure is manufactured with high-rigidity steel plate welding and integrated processing to ensure stable and precise stamping performance.
  • When equipped with an automatic feeding system, it can achieve automated metal processing.
  • For other material processing requirements, please feel free to contact us.


Safety：

  • This model is designed in compliance with labor safety inspection regulations.
  • Equipped with PLC automatic control, it can be set for inching, single stroke, continuous automatic feeding, or multi-machine linkage operations.
  • The piano-style control panel allows operation by single-hand, double-hand, or foot pedal modes.
  • Additional safety light curtains are provided to prevent accidental injury.

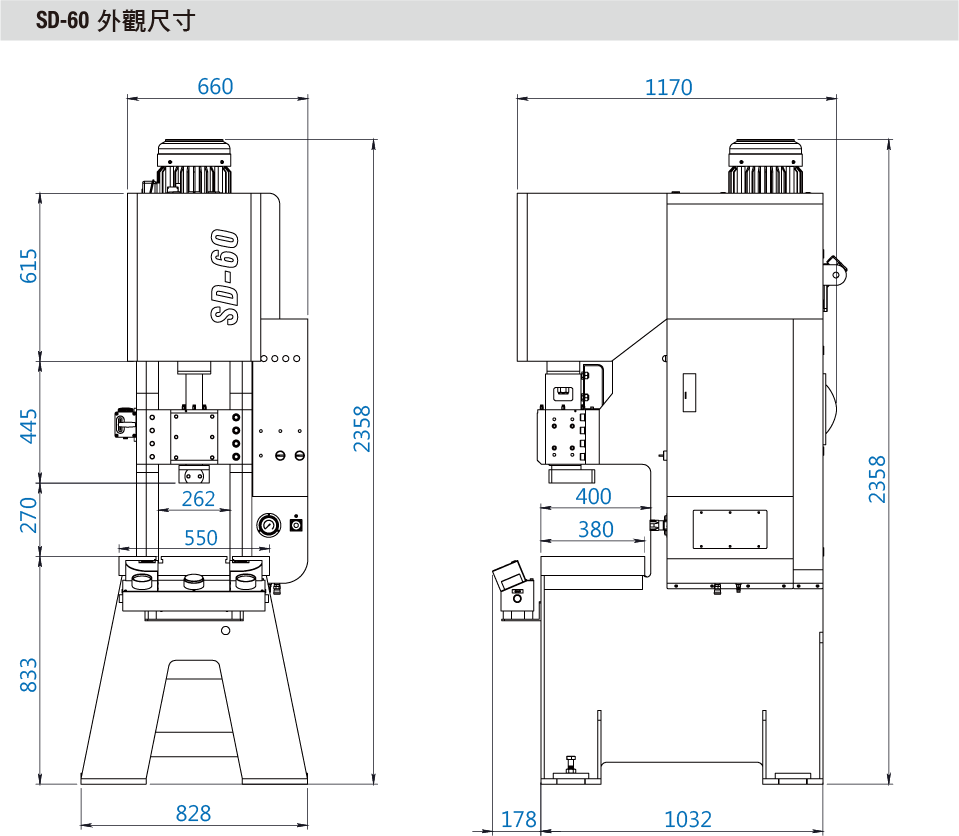

SD-60 精密油壓沖床_外觀尺寸





Item / Model

Unit

 SD-60
Stamping Capacity tons 60
Stroke mm 80
Die Hole mm Ø38.1
Table Size mm 550X380
Table Aperture mm Ø100
Table Thickness mm 170
Slide Area mm 160X110
Table Size mm 250x450
Main Motor HP 7.5HP / 4P
Descending Speed sec 9mm
Return Speed sec 16mm
Machine Weight tons 2.3

■ Specifications and table dimensions can be fully customized. In addition, we welcome inquiries for die manufacturing, quick die change systems, feeding equipment, and complete automation solutions.

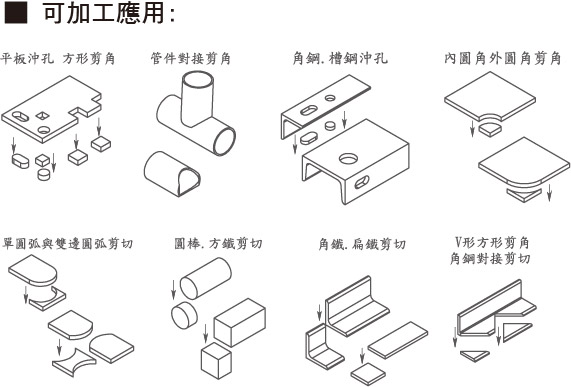

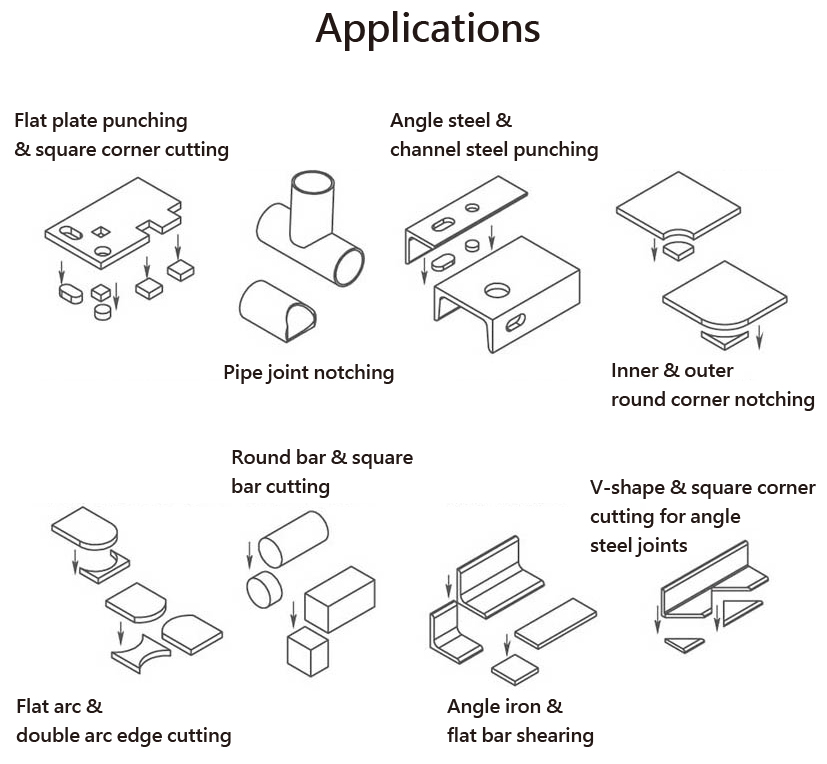

SD-60 精密油壓沖床_可沖孔、剪角、切斷、折彎等各式加工

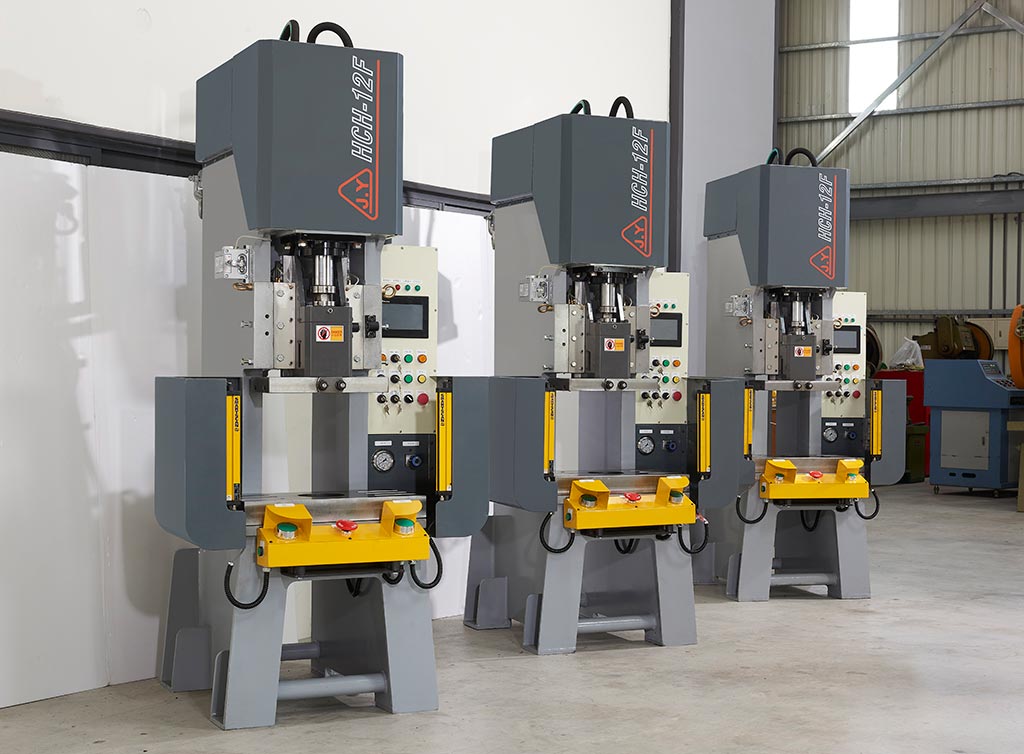

油壓沖床 HCH-12F
