Angle Steel Cutting Machine


Angle Steel Cutting Machine


Angle Steel Cutting Machine

The Angle Steel Cutting Machine WD-16 provides fast and clean cutting of angle steel with burr-free edges, eliminating the need for secondary grinding. Compact, easy to operate, and ideal for rack fabrication, storage systems, and DIY boltless shelving applications.

Specifications:

  •  Model: WD-16

  • One set of angle steel (angle iron) cutting blades

  • Weight: 180 kg

  • Motor Power: 1.5 HP, Single Phase

  • Voltage: 220V / 60Hz

  • Maximum Output: 15 tons (hydraulic system)

  • Maximum Cutting Capacity: 50 × 50 × 3.2t / 60 × 60 × 2.5t

  • Blade Width: 65 × 65 mm

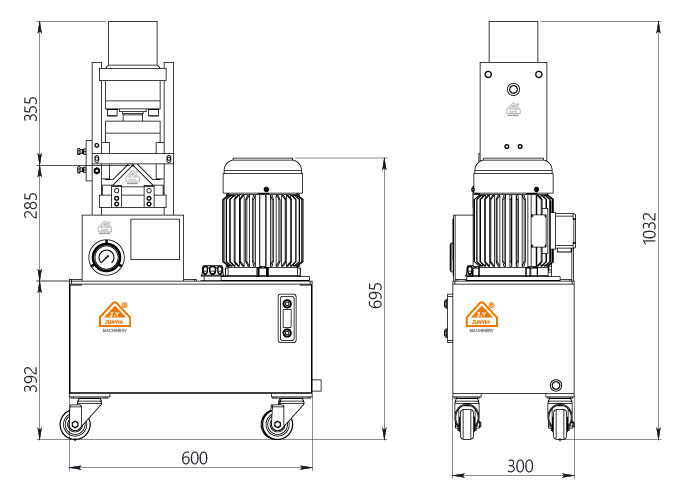

Dimensions:

  •  Length: 600 mm

  • Width: 300 mm

  • Height: 1032 m



Features:

  • The Angle Steel Cutting Machine provides fast and smooth shearing, reducing labor and energy consumption compared to conventional cutting methods.

  • Workpieces are cleanly cut without burrs, improving quality for post-process assembly, welding, and coating.

  • Optional positioning gauge can be equipped with the notching blades to enhance efficiency and reduce defect rates.

  • Compact design, easy to move, equipped with foot switch. Ideal for cutting angle steel for universal applications, warehouse racks, angle steel frames, storage shelves, and DIY boltless racks, providing convenience for angle steel cutting.

  • Customized sizes are available upon request.

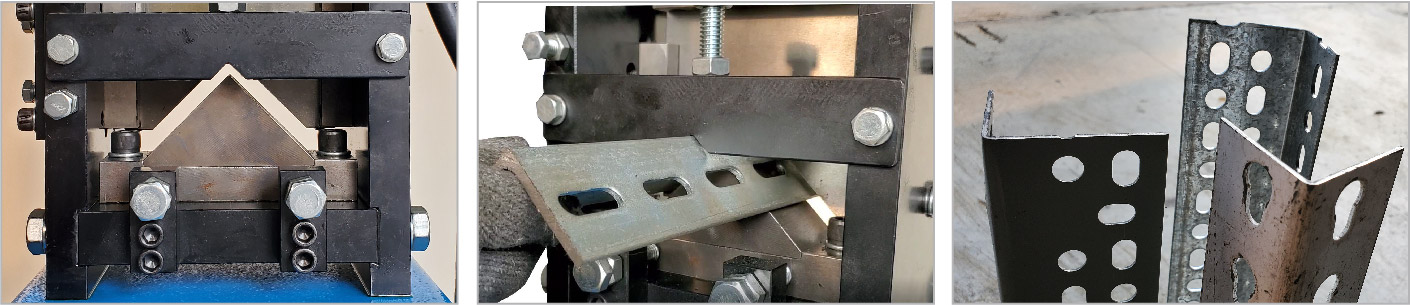

Angle iron / steel punching machines
