Steel Cutting & Punching Machine JY-329
Steel Cutting & Punching Machine JY-329
Steel Cutting & Punching Machine JY-329
Equipment:

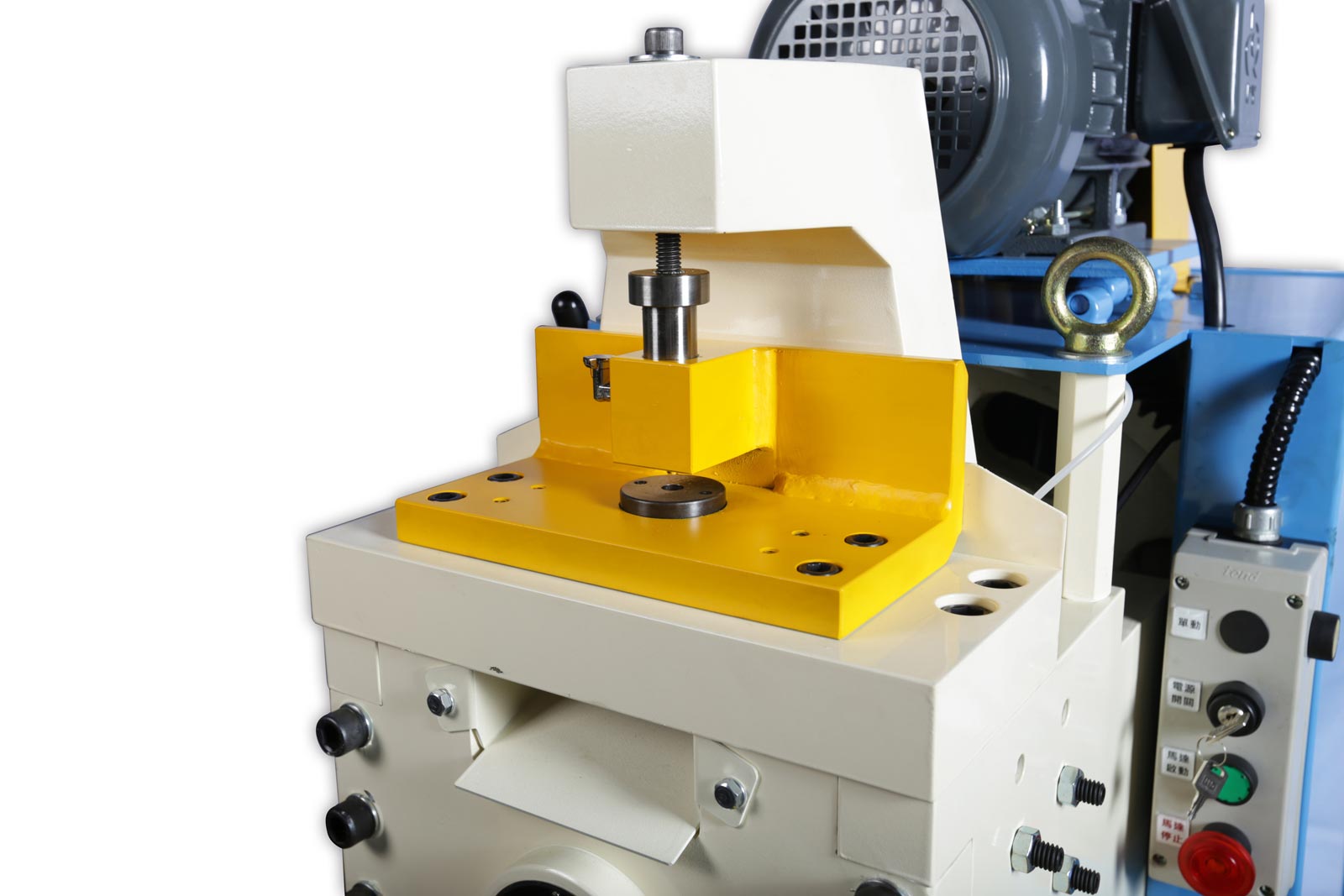

- One round hole die holder set
- Four sets of round hole punching dies

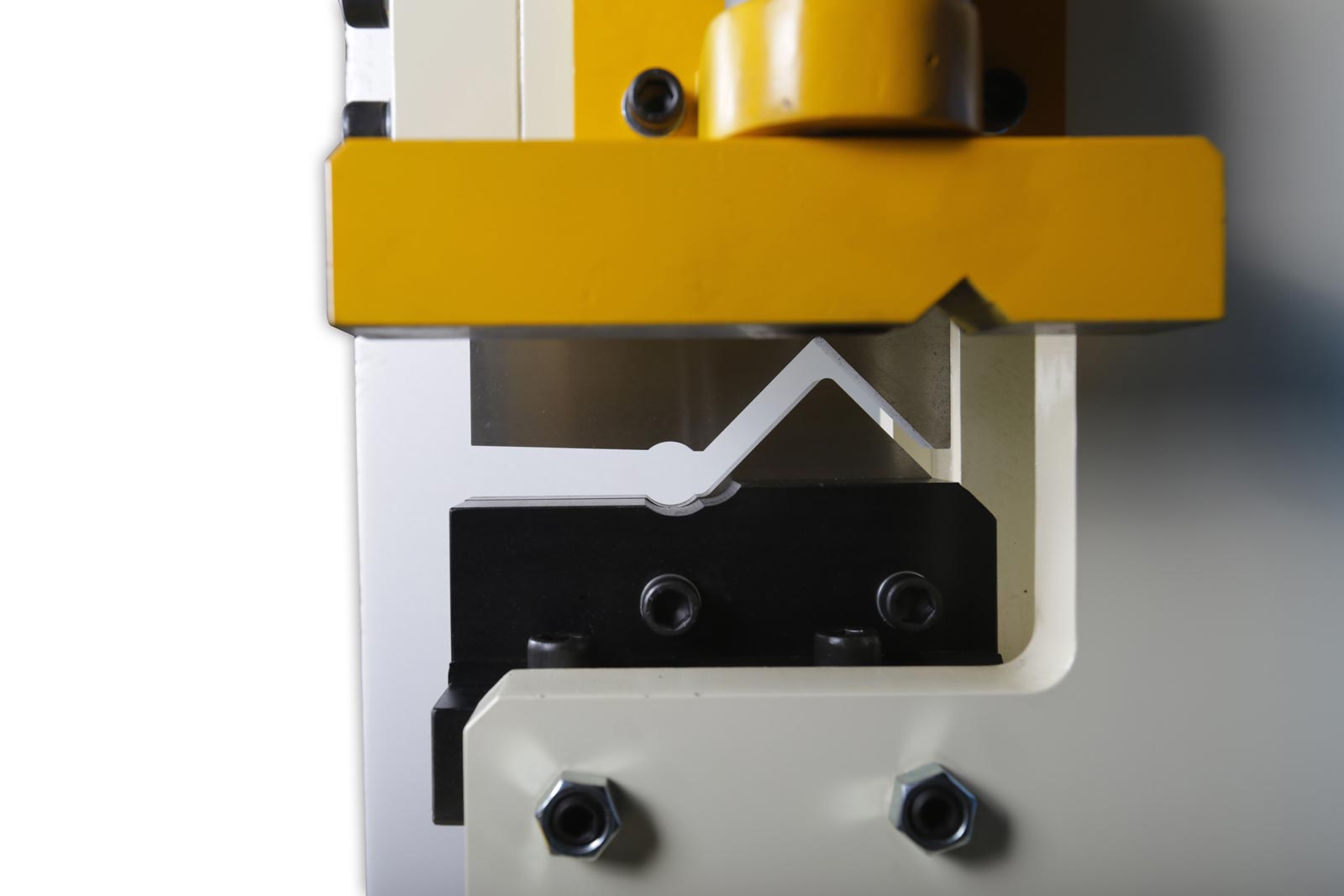

- One set of 90° notching die
- One multifunctional die set
- Weight: 950 kg
- Motor Power: 3 HP
Dimensions:
- Length: 800 mm
- Width: 800 mm
- Height: 1250 mm
Functions：
- The Steel Cutting & Punching Machine is also known as a Universal Ironworker Machine, serving as a versatile metal fabrication machine.
- It is applied in metal cutting, punching, notching, bending, pipe end shearing and punching, as well as inner and outer circular shearing of flat plates.
Performance:
- Fast and smooth punching and shearing operations, saving significant manpower and energy compared to conventional cutting methods.
- Workpieces are flat and burr-free, improving quality in subsequent assembly, welding, and painting processes.

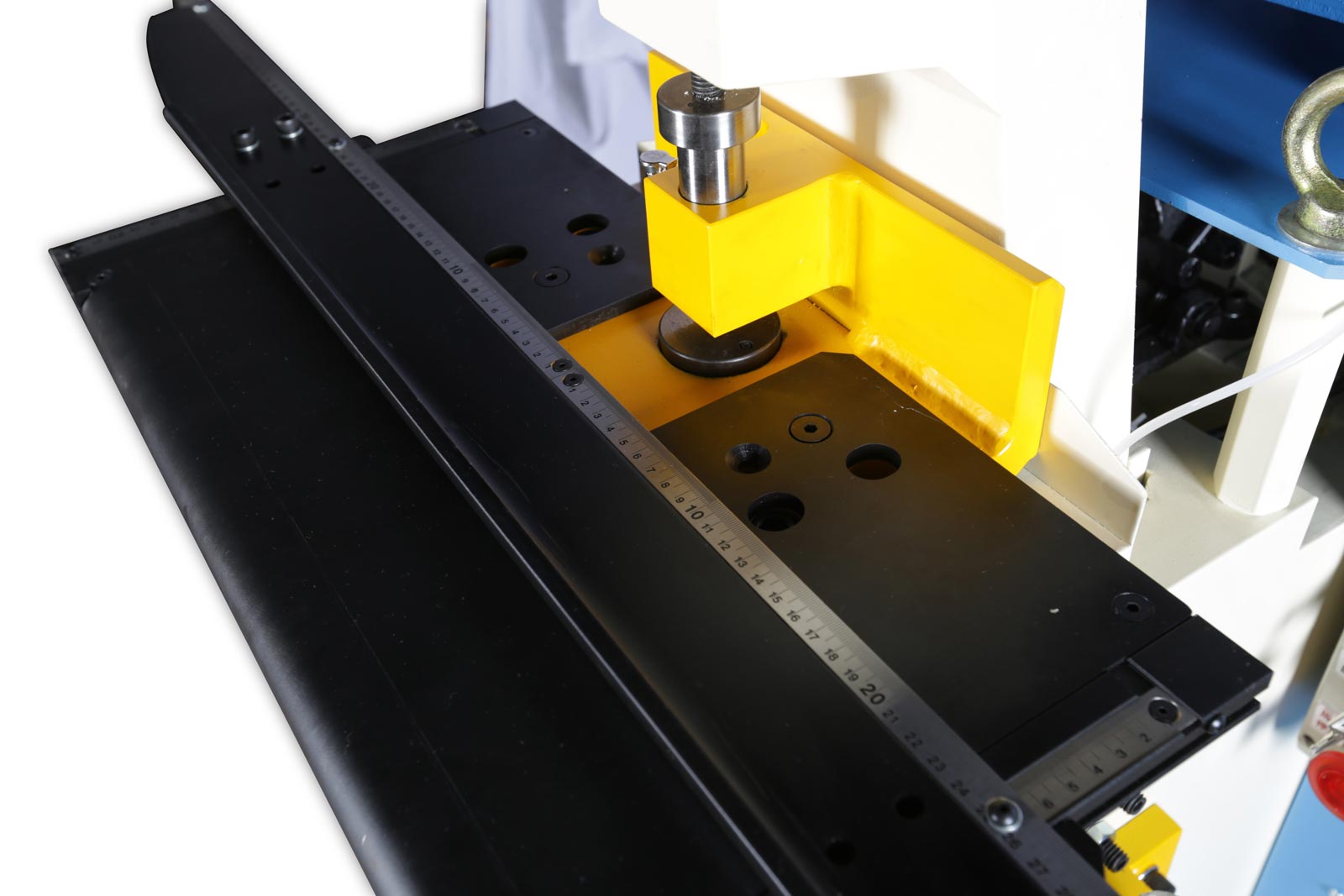

- Punching and notching dies can be optionally equipped with positioning rulers as auxiliary tools to enhance efficiency and reduce defect rates.
Safety:
- Dies are manufactured and tested for long-term durability, ensuring quick and safe replacement.
- Operators can securely hold the workpieces without risk of direct exposure to danger zones. By following proper operating procedures, accidental injuries can be effectively prevented.
|
Model |
steel cutting / Punch machine |
|
|
Model No. |
JY329 |
|
|
Classification |
3 in |
|
|
Weight (Kg) |
950 |
|
|
Horsepower |
3hp；220v(三相) |
|
|
Angular Iron Cutting (mm) |
|
9t×75×75 |
|
Square Iron Cutting (mm) |
|
28×28 |
|
Round Bar Cutting (mm) |
|
Ø32 |
|
Flat Iron Cutting (mm) |
|
12t×75 |
|

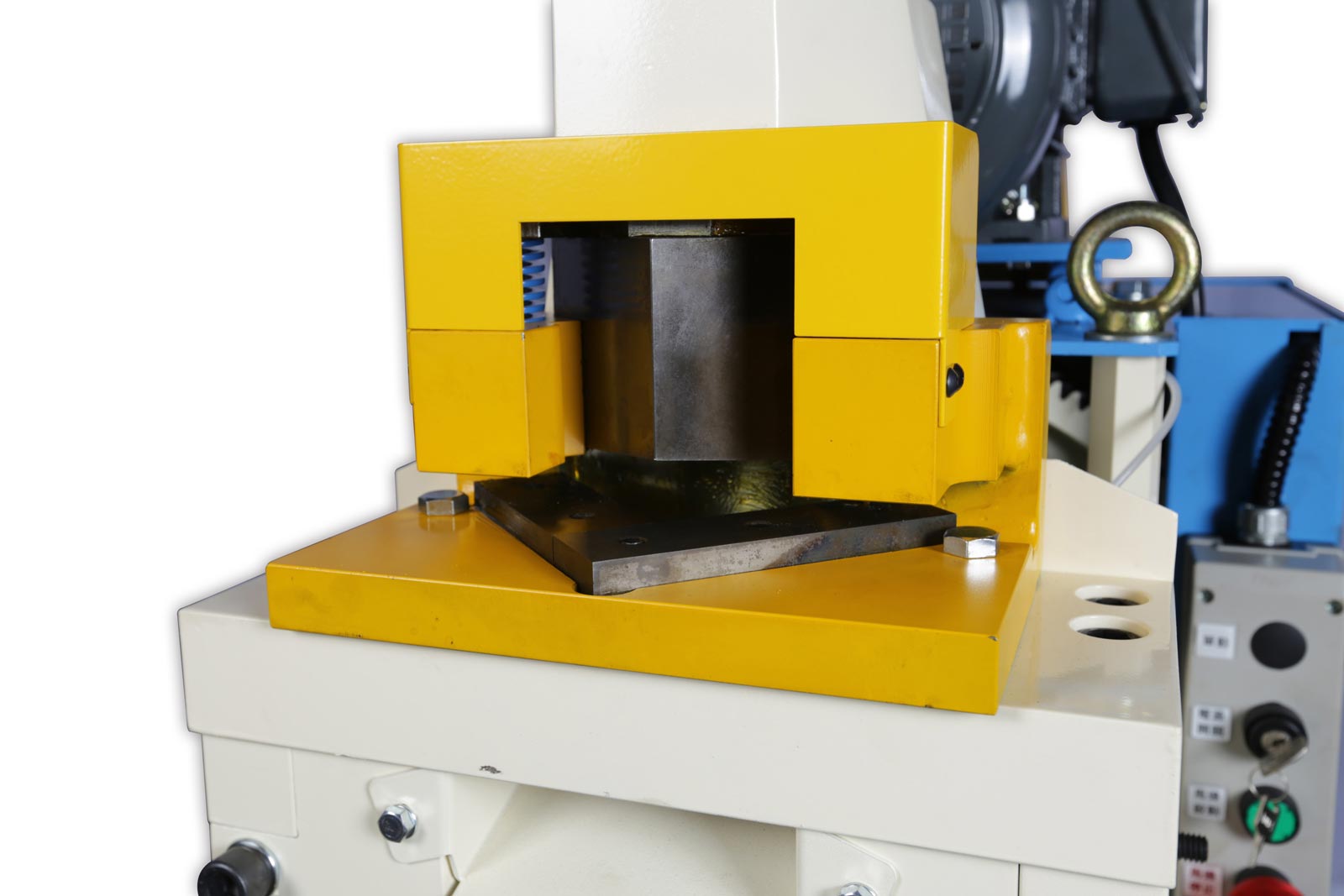

Corner Shearing (mm) |
|
9t×75×75 |
|
90-degree Corner Shearing (mm) |
|
9t×75×75 |
|
Punch (mm) |
|
12t×Ø21 |
|
Oval-hole Punch (mm) |
|
6t×12×32 |
|
Channel Iron Punch (mm) |
|
75 x 40 |
|
Steel / Stainless Steel Pipe Chamfer (mm) |
|
- |
|
ending Iron (mm) |
|
Ø22 |
